| Brand Name : | Duke |
| Model Number : | DKR536 |
| Price : | 29000-39000USD/SET |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 50 SET PRR QUARTER |
| Delivery Time : | 20 WORKING DAYS |

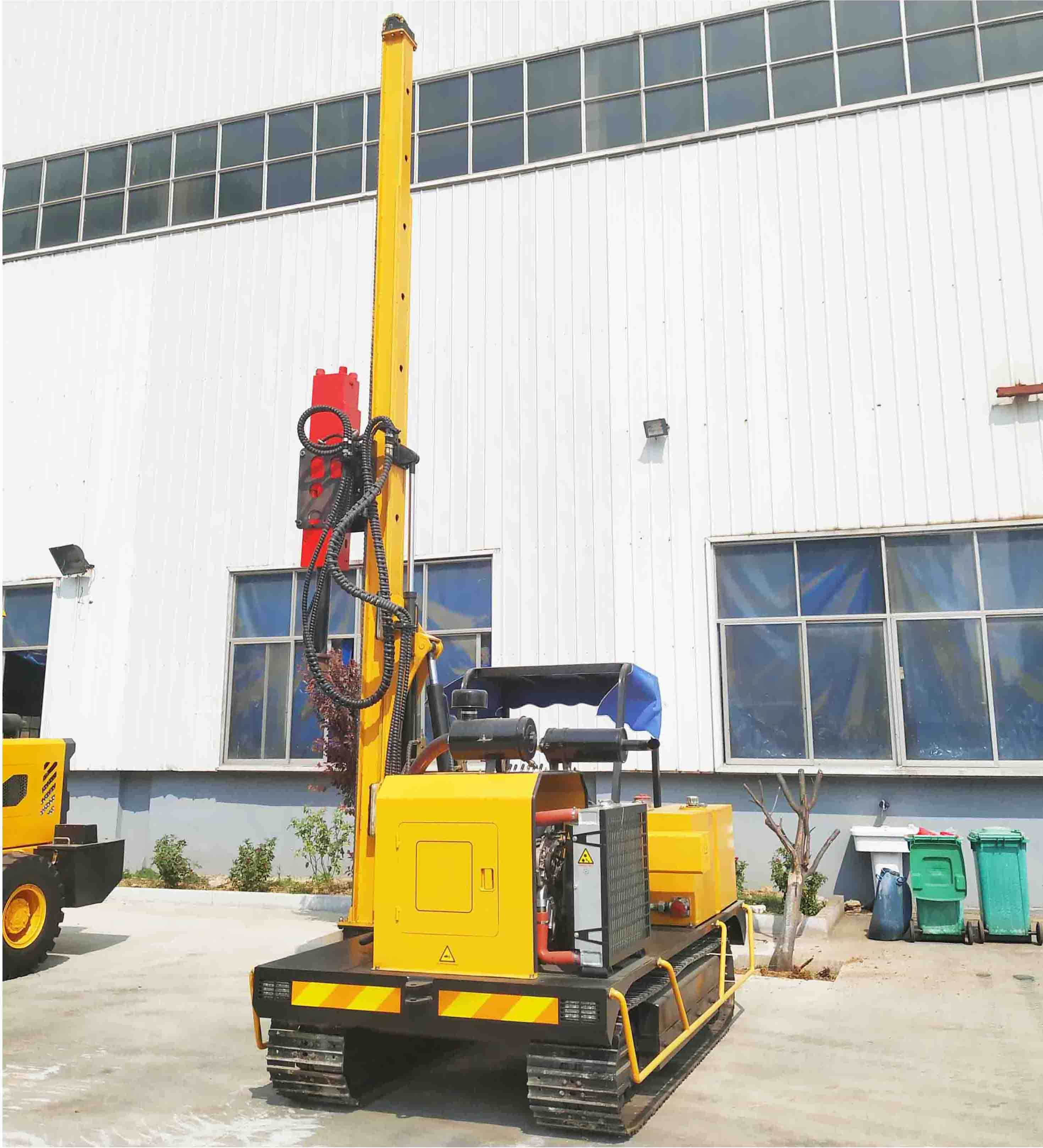

DKR536 multifunction loading photovoltaic solar posts crawler type piling driver
A: Application of piling machine
1. highway guardrail drilling, piling, piling.
2. hotovoltaic pile piling, drilling, rotary pile.
3. other kinds of site piling (e.g. farms, pastures, orchards,
etc.).
B: Features of piling machine
C: Main technical data of piling machine
| NO | Item | Value | Unit |
| 1 | Dimension | 3250*2300*5000(working) | mm |
| 5000*2300*2300(folded) | |||
| 2 | Net weight | 4500 | kg |
| 3 | Diesel engine power | 53 | kw |
| 4 | Working motor torque(max) | 5700 | Nm |
| 5 | Rotary motor torque(ground screw piling) | 4000 | NM |
| 6 | Rotary motor torque(auger drilling) | 4000 | NM |
| 7 | Post length(max) | 5000 | mm |
| 8 | Drilling diameter(auger drilling) | 0-300 | mm |
| 9 | Drilling auger(left/right) | 10/30 | ° |
| 10 | Drilling auger(forwards/backwards) | 70/30 | ° |
| 11 | Hydraulic system pressure | 16 | Mpa |
| 12 | Total hysdraulic systerm flow | 70 | l/min |
| 13 | Rotary motor flow | 70 | l/min |
| 14 | Ralking speed | 0-1600 | m/h |
| 15 | Chassis spec | 2002*1800*350 | mm |
| 16 | Width of steel chassis track | 350 | mm |
| 17 | Track height above the ground | 230 | mm |
| 18 | Grade ability | 15/30 | ° |
| 19 | Track turn rate | 1:21.4 | |
| 20 | Tracking working pressure difference | 13 | mpa |
D: More detail of piling machine
E: After sales service:
1.We can provide all-round technical guidance ff there is any
problem about our machine;
2.7*24 hours multi-language professional after-sales service group
3.Construction solutions will be provided for different geological
conditions.
4.All the accessories of that kind of machine can be provided for a
long time.
F: Packing and shipping about piling machine
Packaging: General export packing or customized packaging according
to your requirement.
Shipping: Professional goods shipping forwarders.
Delivery Time: 20 working days after deposit.
G: Company workshop environment:
We are a national high-tech enterprise specialized in the research and development, production, sales, export and service of multi-functional slip-form paver, water well drilling rig, aerial platform truck, ladder truck, highway guardrail pile driver, solar pile driver, hydraulic earth auger, piling rig spare parts and other equipment.
|
|
